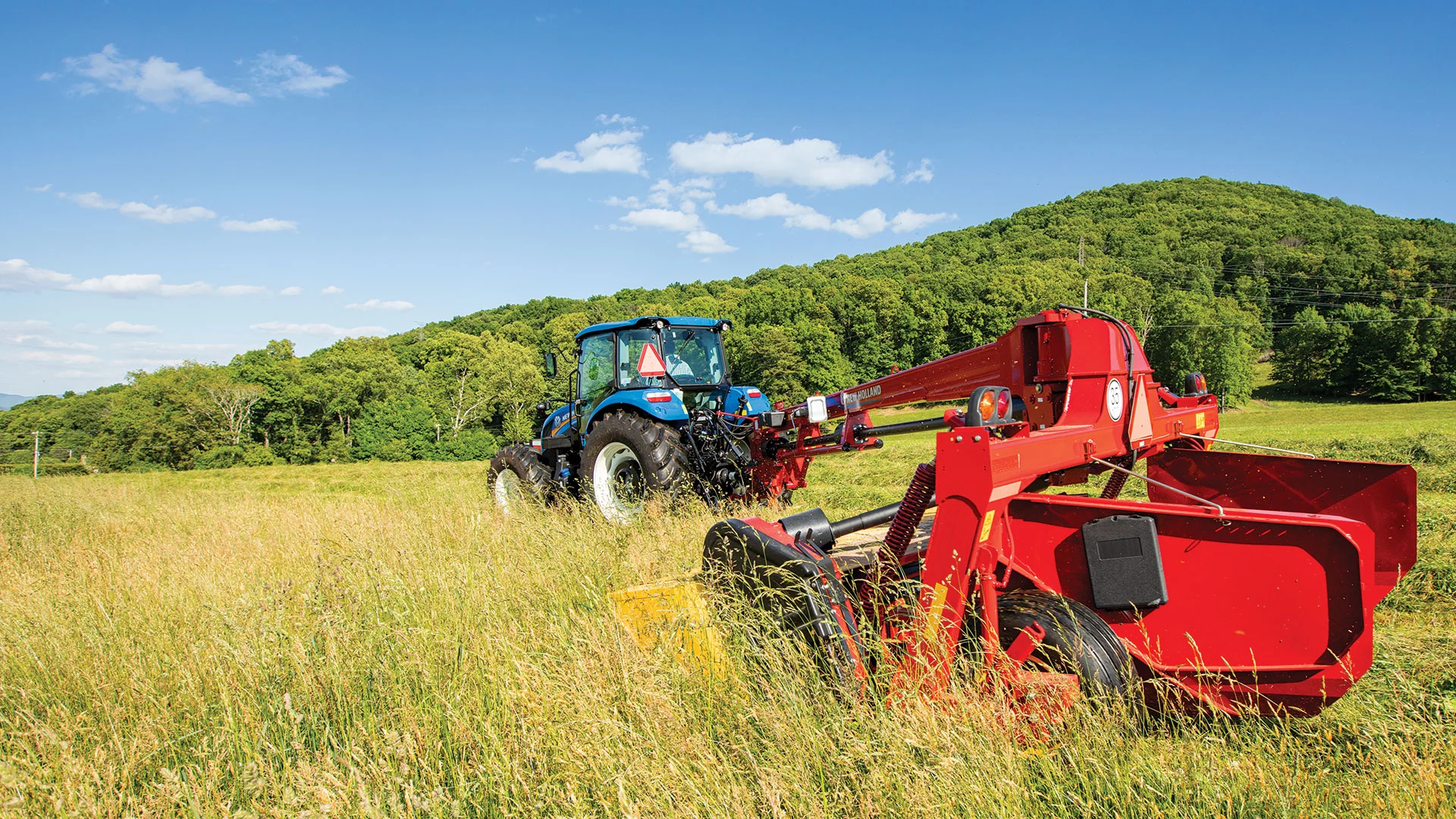

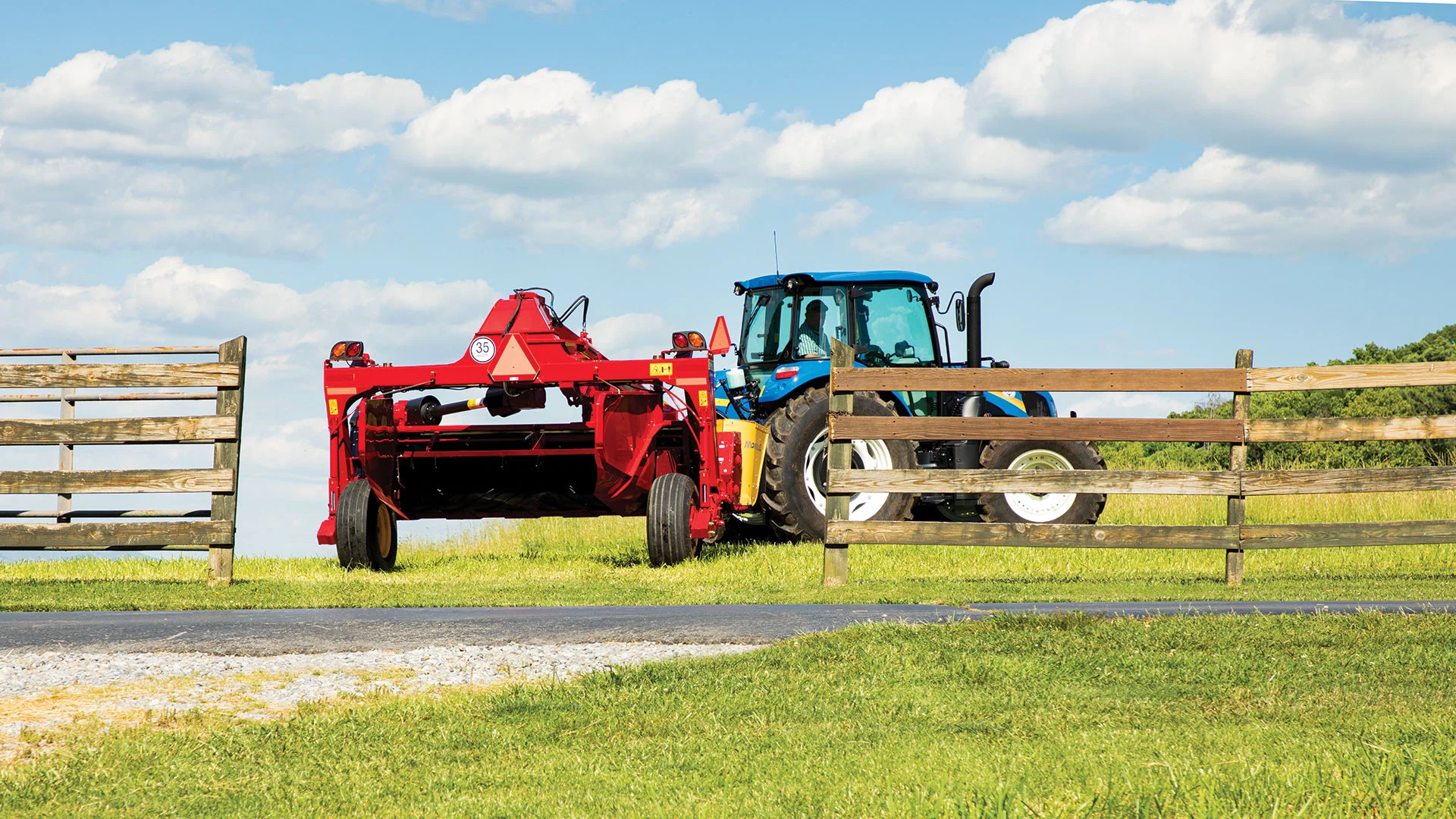

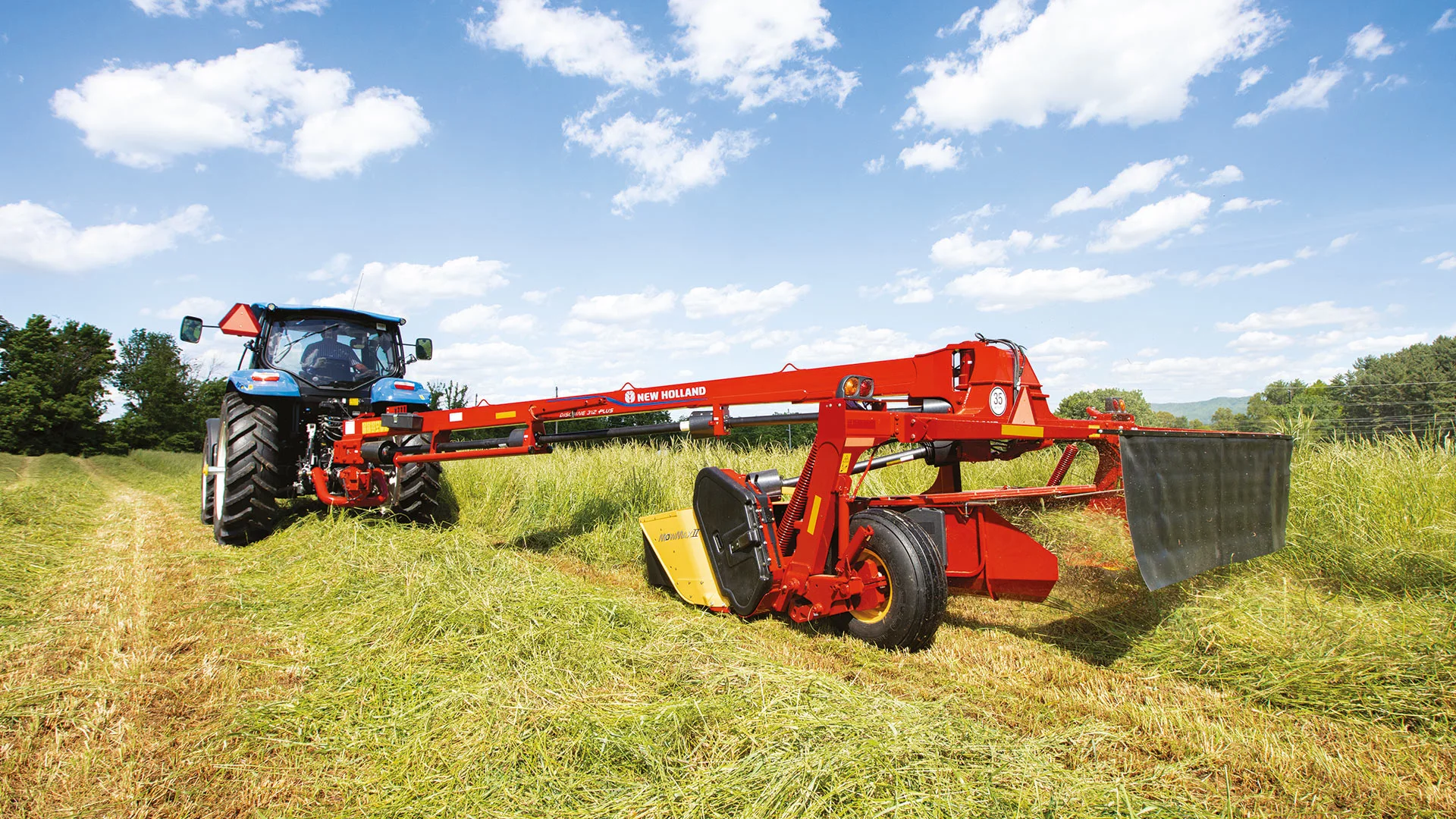

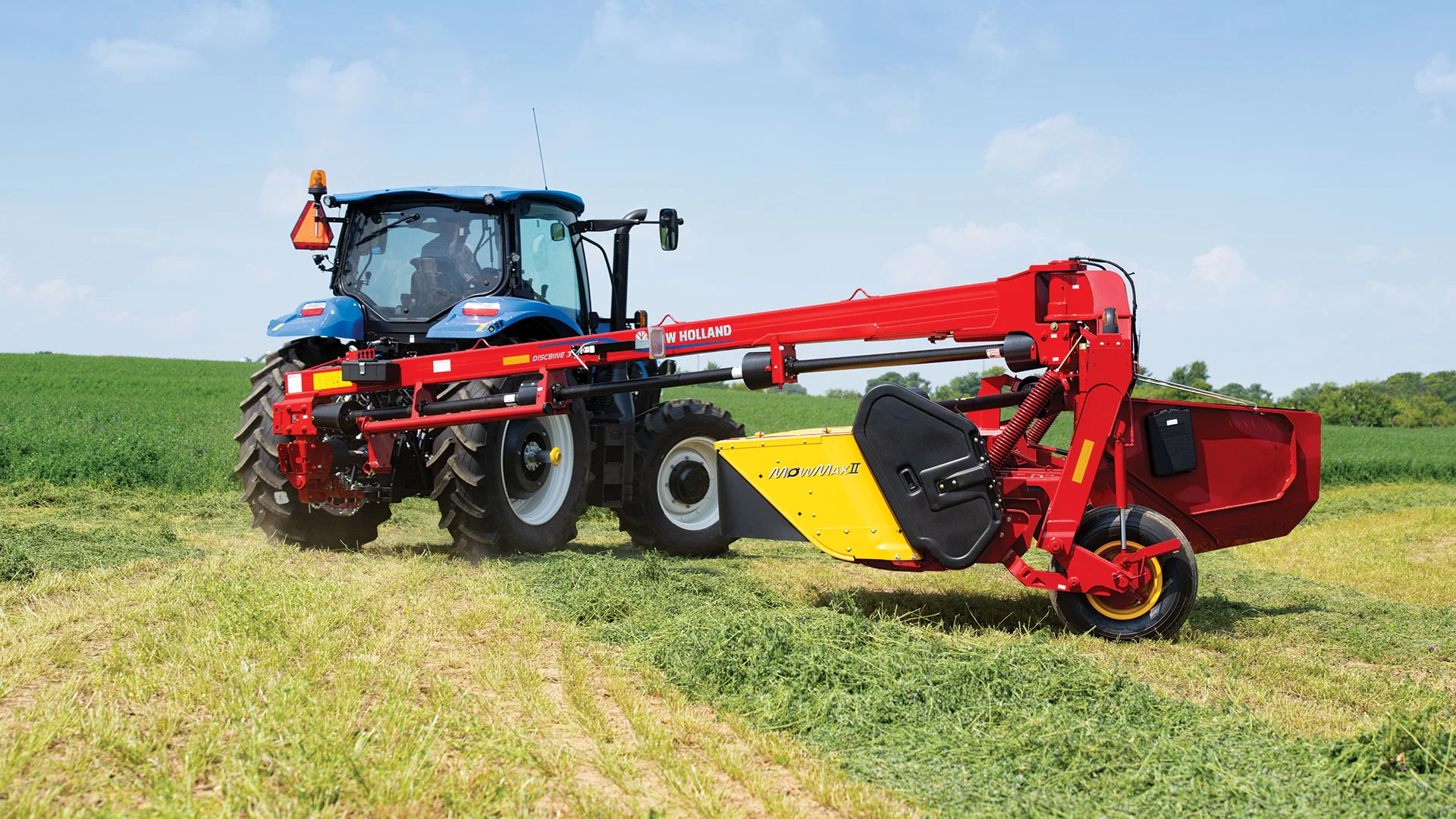

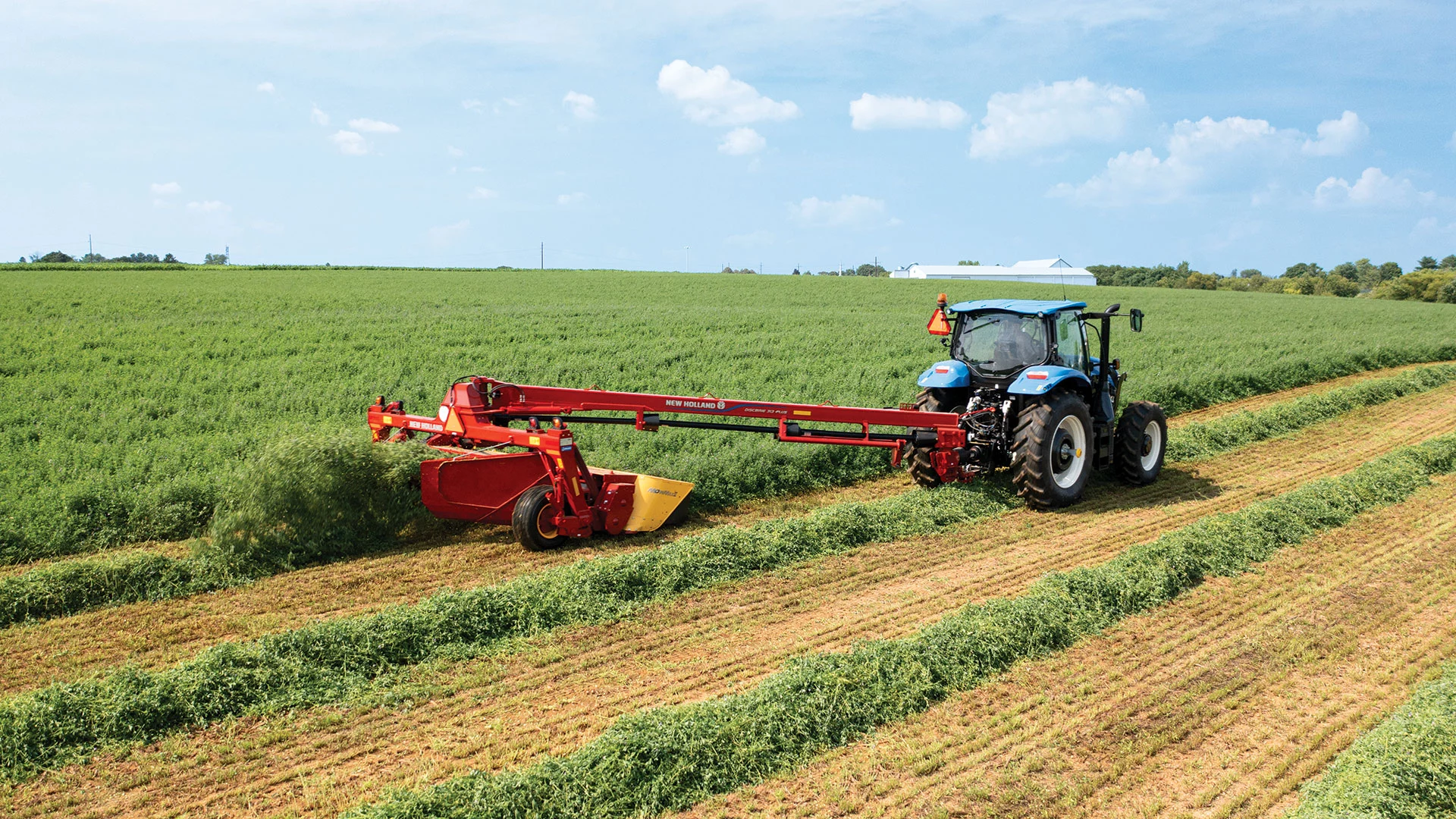

New Holland Discbine® PLUS Center-Pivot Disc Mower-Conditioners

Contact us for price

Stock status: Call Store for Availability

CLEANER AND CLOSER CUTTING

Get the cleanest and closest cut yet with the MowMax™ II PLUS true modular cutterbar. Faster knife tip speed, a slimmer cutterbar profile, and reshaped rock guards improve cut quality while providing a 30% lower cutting height.

TIME-SAVING INNOVATIONS

The standard QuickMax™ knife-change system and ShockPRO™ hubs are designed to save you hassle when you’re making hay. For additional peace of mind, the cutterbar is backed by a 36-month warranty.

PIVOT TO GREATER PRODUCTIVITY

Whether you need a nimble mower to enter tight places or big capacity for wide-open spaces, four center-pivot models, with cut widths from 10- to 16-feet wide, are designed and built with pride in New Holland, Pennsylvania.

FROM WIDE SWATHS TO NARROW WINDROWS

Choose between the chevron intermeshing rubber or steel rolls, or the LeaningEdge™ flail tine conditioning system to fit your needs. Enhanced swath control surfaces behind the conditioning system result in neater-looking swaths with improved dry down.

Call Us Now

Specs

Cutterbar



Type
Cutting width, ft. in. (cm)
Cutting height, in. (mm)
Cutting height w/ opt. adjustable shoes, in. (mm)
Number of discs/knives per disc
Maximum disc speed @ 1,000 rpm PTO
Hydraulic tilt/cutting height control
Tilt angle, degrees
Header flotation
ShockPRO™ disc drive protection system
3-year factory cutterbar warranty
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
MowMax™ II PLUS true modular cutterbar MowMax™ II PLUS true modular cutterbar MowMax™ II PLUS true modular cutterbar MowMax™ II PLUS true modular cutterbar
10’ 1” (3.0) 11’ 7” (3.5) 13’ 1” (4.0) 16’ 5” (5.0)
0.5 – 2.6 (12 – 65) 0.5 – 2.6 (12 – 65) 0.5 – 2.6 (12 – 65) 0.5 – 2.6 (12 – 65)
0.5 – 5.6 (12 – 143) 0.5 – 5.6 (12 – 143) 0.5 – 5.6 (12 – 143) 0.5 – 5.6 (12 – 143)
6/2 7/2 8/2 10/2
2250 2250 2250 2250
-2° to -10° -2° to -10° -2° to -10° -2° to -10°
Vertical & lateral, adjustable springs Vertical & lateral, adjustable springs Vertical & lateral, adjustable springs Vertical & lateral, adjustable springs
Roll Conditioning Systems



Chevron intermeshing rubber rolls
Chevron intermeshing steel rolls
Length, in. (mm)
Diameter, in. (mm)
Drive method
Speed, rpm
Conditioner roll tension adjustment
Conditioner gap adjustment
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
90 (2286) 102 (2591) 125 (3175) 125 (3175)
10.4 (264) 10.4 (264) 10.4 (264) 10.4 (264)
Belt-driven, enclosed gearbox Belt-driven, enclosed gearbox Belt-driven, enclosed gearbox Belt-driven, enclosed gearbox
750 or 640 750 or 640 750 or 640 750 or 640
LeaningEdge™ Flail Tine Conditioning System



Compatibility
Number of tapered flail tines
Length, in. (mm)
Diameter, in. (mm)
Drive method
Speed, rpm
Conditioner gap adjustment
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
90 100 120
90 (2286) 102 (2591) 125 (3175)
1400 1400 1400
Belt Belt Belt
1042 or 752 with kit 1042 or 752 with kit 1042 or 752 with kit
Crop Discharge



Swath width, ft. (m)
Windrow width, ft. (m)
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
6 (1.8) 7 (2.1) 10 (3) 10 (3)
3 – 6 (.91 – 1.8) 3 – 7 (.91 – 2.4) 3 – 8 (.91 – 2.4) 3 – 8 (.91 – 2.4)
Driveline



540 rpm, 6-spline 1-3/8” input speed
1,000 rpm, 21-spline 1-3/8” input speed
Slip and overrunning clutch protection
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
Hitches



Drawbar swivel
Drawbar category
2-point semi-mount swivel
3-point hitch category
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
ASAE Category II or III ASAE Category II or III ASAE Category II or III ASAE Category II or III
ASAE Category II, III-N, or III ASAE Category II, III-N, or III ASAE Category II, III-N, or III ASAE Category II, III-N, or III
Tractor Requirements



Minimum PTO power, hp
Hydraulic requirement – rubber rolls
Hydraulic requirement – steel rolls
Hydraulic requirement – flails
Electrical
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
80 85 90 100
1 double acting, 1 single acting 1 double acting, 1 single acting 1 double acting, 1 single acting 1 double acting, 1 single acting
1 double acting, 1 single acting 1 double acting, 1 single acting 1 double acting, 1 single acting
2 double acting 2 double acting 2 double acting
7-pin connector for transport lights 7-pin connector for transport lights 7-pin connector for transport lights 7-pin connector for transport lights
Dimensions



Transport width, ft. in. (m)
Operating weight – rubber rolls, lbs. (kg)
Operating weight – steel rolls, lbs. (kg)
Operating weight – flails, lbs. (kg)
Discbine® 310 PLUS

Discbine® 310 PLUS
Discbine® 312 PLUS

Discbine® 312 PLUS
Discbine® 313 PLUS

Discbine® 313 PLUS
Discbine® 316 PLUS

Discbine® 316 PLUS
10’ 4” (3.2) 11’ 10” (3.6) 13’ 5” (4.03) 16’ 8” (5.07)
5,760 (2,613) 5,880 (2,667) 6,255 (2,837) 6,980 (3,166)
5,980 (2,712) 6,460 (2,930) 7,080 (3,211)
5,660 (2,567) 5,760 (2,613) 6,147 (2,788)
