Specs
| Product Specification | Turf Storm XL | Turf Storm |
|---|---|---|
| Hopper Capacity | 220 lb | 120 lb |
| Spreader Motor | High-Torque Electric | High-Torque Electric |
| Spread Width | Up to 25 ft. | Up to 25 ft. |
| Deflector | Mechanical Lever Activation of Stainless Steel Door | Mechanical Lever Activation of Stainless Steel Door |
| Hopper Cover | Included | Included |
| * Dimensions are approximate |

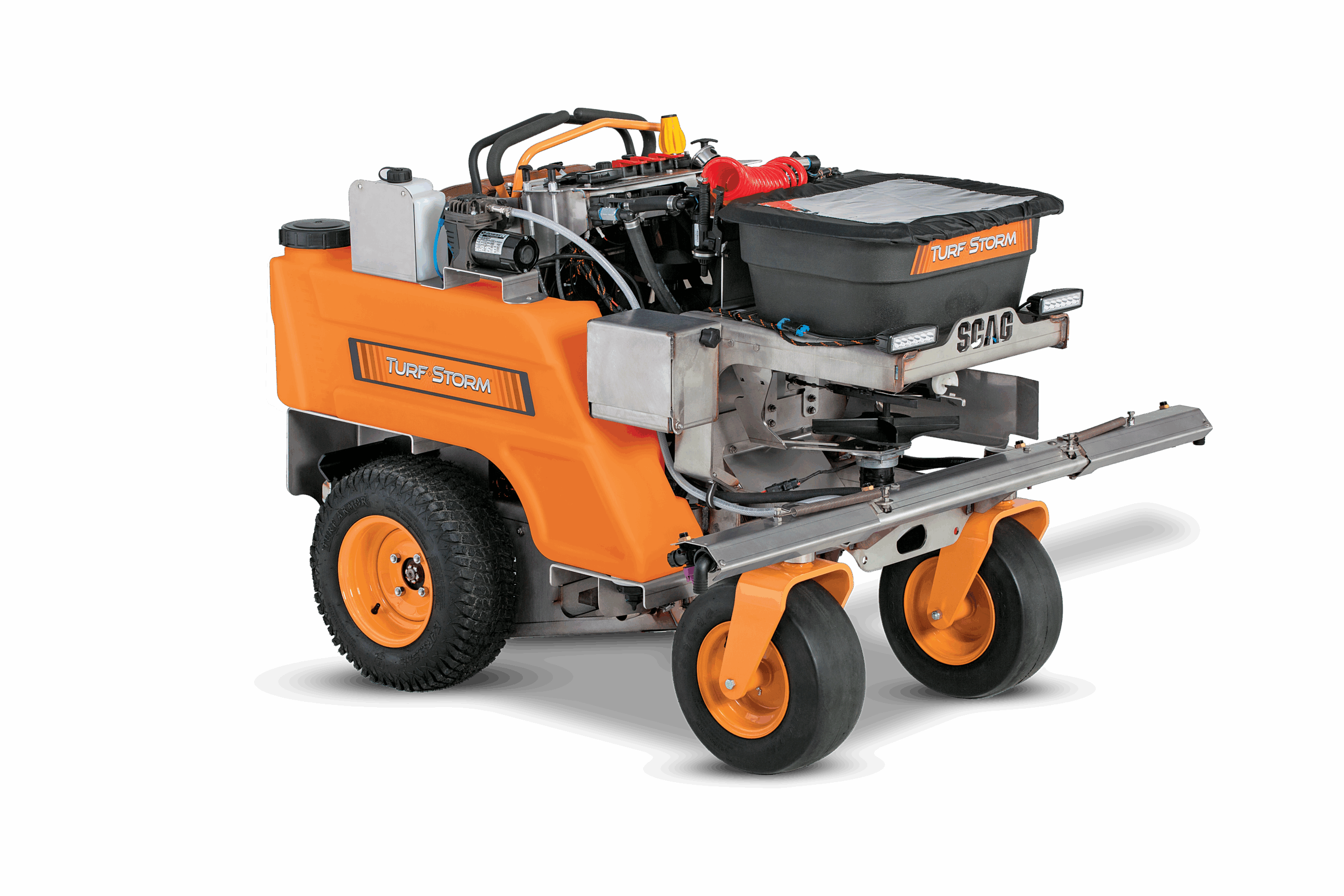

Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
| Product Specification | Turf Storm XL | Turf Storm |
|---|---|---|
| Spray Capacity | 60-gallon; Dual 30-gallon tanks. High visibility tanks. | 30-gallon; Dual 15-gallon tanks. High visibility tanks. |
| Hinged Boom Arms | 8-foot wide, 5 nozzles | 65-inch wide, 4 nozzles |
| Spray Width | 2, 6, 8 or 10 ft | 2, 6 or 8 ft |
| Breakaway Booms | Standard | Standard |
| Coil Hose | Heavy duty, 75-foot high-pressure hose | 15-foot flex hose |
| Pump Capacity | 5 gpm; 7 gpm optional accessory | 5 gpm; 7 gpm optional accessory |
| * Dimensions are approximate |
Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
| GENERAL | Turf Storm XL | Turf Storm |
|---|---|---|
| Model | STS60-23BV | STS30-23BV |
| Total Fuel Capacity | 5 gallons | 4.5 gallons |
| Front Wheel(s) | 16″ x 6.5″-8″, pneumatic | 16″ x 6.5″-8″, pneumatic |
| Rear Wheels | 20″ x 12″-10″, 4-ply | 20″ x 7″-10″, 4-ply |
| Currently Available Accessories | Foamer Kit, LED Light Kit and 7 GPM pump | Foamer Kit, LED Light Kit and 7 GPM pump |
| ENGINE | ||
| Engine | Briggs Vanguard™ | Briggs Vanguard™ |
| Horsepower | 23 hp | 23 hp |
| Charging System | 12 Volt, 50 Amp | 12 Volt, 50 Amp |
| DRIVE SYSTEM | ||
| Drive System | Dual Pump and Motor | Dual Pump and Motor |
| Pumps | Hydro-Gear: PG Series 10 cc | Hydro-Gear: PG Series 10 cc |
| Motors | Parker TG Series: 14.5ci | Parker TG Series: 14.5ci |
| Ground Speed | Up to 8.5 MPH forward Up to 5 MPH reverse | Up to 8.5 MPH forward Up to 5 MPH reverse |
| Parking Brake | Hand Lever | Hand Lever |
| DIMENSIONS | ||
| Length | 67″ | 65″ |
| Width (spray booms in) | 54″ | 35.5″ |
| Width (spray booms out) | 82″ | 65″ |
| Height | 50″ | 50″ |
| Weight (dry) | 965 lb | 859 lb |
| Warranty | 2-Year Commercial & Non-Commercial Warranty; 90-day Rental | 2-Year Commercial & Non-Commercial Warranty; 90-day Rental |
| PRICING | ||
| MSRP | $19,999 | $17,999 |
Pre-production unit shown in photos. Actual product may vary. Specifications subject to change.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
