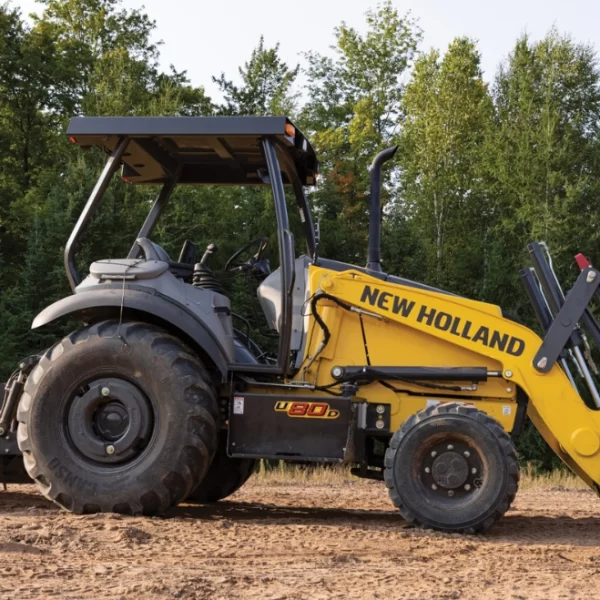

New Holland TRACTOR LOADERS

Contact us for price

Stock status: Call Store for Availability

Call Us Now

Specs

LOADER



Single-lever 5 function control w/ self-leveling and Return-to-Dig
Positive hold float
Return-to-dig
Automatic self-leveling
In-line, reverse linkage
Dual parallel dump cylinders
Clutch disconnect button on loader control and shift levers
Bucket position indicator
Long Life Bucket – Width, in (m)
Long Life Bucket – Weight, lbs (kg)
Long Life Bucket – Struck, yd³ (m³)
Long Life Bucket – Heaped, yd³ (m³)
4-in-1 Bucket – Width, in (m)
4-in-1 Bucket – Weight, lbs (kg)
4-in-1 Bucket – Struck, yd³ (m³)
4-in-1 Bucket – Heaped, yd³ (m³)
U80C

U80C
82 (2.08)
686 (311)
.87 (.67)
1.03 (0.79)
82 (2.08)
1,451 (658)
.85 (.65)
1.04 (0.80)
ENGINE



Model
Type
Cylinders
Bore x stroke, in (mm)
Displacement, in³ (L)
Fuel injection
Engine speeds, (rpm) – Rated speed, full load
Engine speeds, (rpm) – Low idle
Engine speeds, (rpm) – High idle, no load
Horsepower (SAE J1349) – Gross @ 2,200 rpm, (kW)
Horsepower (SAE J1349) – Net @ 2,200 rpm, (kW)
Maximum torque @ RPM – Gross, lb-ft (Nm)
Maximum torque @ RPM – Net, lb-ft (Nm)
Torque rise at rated speed
U80C

U80C
F5HFL463D*F005
4-stroke, turbocharged
4
3.9 x 4.33 (99 x 110)
207 (3.4)
Direct HPCR (High Pressure Common Rail)
2,200
900 – 1,000
2,330 – 2,430
74 (55)
68.4 (51)
233 (316)
219 (298)
35%
POWERTRAIN



Transmission type
Torque converter ratio (standard)
Torque converter (PTO ready)
Differential-lock
Service brakes
Parking brakes
Travel speeds, mph (km/h)*
Forward/Reverse (standard)
Forward/Reverse (PTO Ready)
U80C

U80C
4 speed synchromesh with hydraulically actuated clutches and electric F/R shuttle control, clutch disconnect buttons on the transmission shifter and loader control lever
3:1
3.2:1
On the go push-button activation
Individually applied hydraulically actuated, maintenance-free, self adjusting outboard mounted wet disc
Trans Mounted SAHR (Spring Applied Hydraulic Release)
1st – 2nd – 3rd – 4th
3.8 (6.1) – 6.1 (9.8) – 12.8 (20.6) – 24.0 (38.6)
3.5 (5.6) – 5.5 (8.9) – 11.8 (19) – 21.3(34.3)
ELECTRICAL



Voltage
Alternator, amps
Battery
Optional batteries
Power plugs, amps
U80C

U80C
12 Volts, negative ground
120
850 CCA
850 CCA
30 total
HYDRAULICS



Pump
Loader flow @ rated engine rpm, gpm @ psi (L/min @ bar)
Loader control valve
3-pt hitch flow @ rated engine rpm, gpm @ psi (L/min @ bar)
3-pt hitch control valve
Loader auxiliary hydraulics, gpm (L/min)
Main relief pressure, psi @ gpm (bar @ L/min)
Filtration
Oil cooler
U80C

U80C
Gear-type, transmission mounted, direct drive to engine crankshaft
28.5 @ 3,000 (108 @ 207)
2 or 3-spool with single lever control for lift, dump and tilt and auxiliary hydraulics, positive hold float and return-to-dig
3 to 8 @ 2,000 (0 to 30 @ 137)
Sectional 4-spool, open-center parallel circuits with variable control for lift, pitch, tilt, and 2 auxiliary remotes
12 to 28.5 (45.4 to 108)
3,050 + 50 – 50 @ 28.5 (210 + 3 – 3 @ 108)
7 micron full flow replaceable cartridge on return line, condition indicator light for filter
Heavy-duty
TURNING DIAMETER**



2WD, ft/in (m) Brakes on/ off
4WD-engaged, ft/in (m) Brakes on/ off
4WD-disengaged, ft/in (m) Brakes on/ off
U80C

U80C
12’ 2” (3.70) / 12’ 10” (3.91)
11’ 7” (3.52) / 13’ 9” (4.18)
12’ 3” (3.72) / 12’ 11” (3.92)
TIRES



Front
Rear
U80C

U80C
2WD-11 L x 16.1, 10-ply rating / 4WD-12 L x 16.5, 8-ply rating
4WD-12 L x 16.5, 8-ply rating / 2/4 WD-19.5 L x 24, 10-ply rating OPT
SERVICE CAPACITIES



Fuel tank, gal (L)
Hydraulic system, gal (L) – Total
Hydraulic system, gal (L) – Reservoir w/filter
Hydraulic system, gal (L) – Reservoir w/o filter
Transmission, gal (L) – 2WD Total system
Transmission, gal (L) – 4WD Total system
4WD Front axle, qt (L) – Differential
4WD Front axle, qt (L) – Planetaries (each)
Rear Axle, qt (L) – Differential
Rear Axle, qt (L) – Planetaries (each)
Engine oil w/filter, qt (L)
Cooling system, qt (L)
U80C

U80C
30 (114)
19 (72)
15.3 (58)
14.8 (56)
4.5 (17)
5.25 (20)
5.8 (5.5)
0.75 (0.7)
14.4 (13.6)
1.6 (1.5)
8.5 (8)
17 (16.1)
3 POINT HITCH



Category1 & II 3-point hitch
Hydraulic lift, pitch, tilt and (2) auxiliary remote
Variable flow from 0 to 8 gpm (0 to 30 L/min)
485 lbs (220 kg) counterweight included with hitch
Hitch position – Lowest point lbs (N)***
Hitch position – 1/5 lbs (N)
Hitch position – 2/5 lbs (N)
Hitch position – 3/5 lbs (N)
Hitch position – 4/5 lbs (N)
Hitch position – Highest point lbs (N)
U80C

U80C
2,500 (11 121)
3,247 (14 444)
3,400 (15 125)
3,501 (15 574)
3,297 (14 666)
2,984 (13 274)
WEIGHT



Base Unit**** with added options
Cab
4WD
3,000 lbs (counterweight)
500 lbs Rear (counterweight)
440 lbs Front (counterweight)
Box Scraper
4-in-1 Bucket
U80C

U80C
10,916 lbs
+646 lbs
+218 lbs
+3,000 lbs
+500 lbs
+440 lbs
+1,592 lbs
+717 lbs
