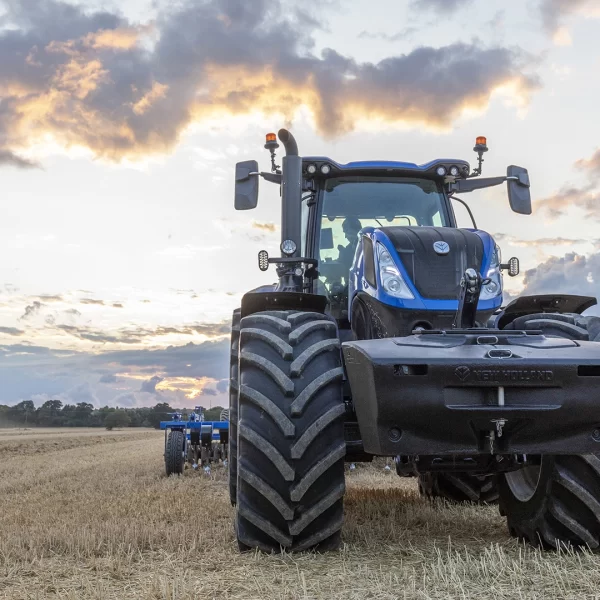

New Holland T7 with PLM Intelligence™

Contact us for price

Stock status: Call Store for Availability

A NEW BENCHMARK FOR SPACIOUS COMFORT The NEW Horizon™ Ultra cab is all about space, with more glass, a wider door and added storage. And, at just 66dBA, this cab is the quietest you’ll find.
PLM INTELLIGENCE™ TECHNOLOGY The advanced in-cab IntelliView™ 12 display is used for navigation, mapping, information sharing and fleet management.
POWER AND EFFICIENCY Powered by the FPT Industrial 6.7 liter NEF engine, the T7 Long Wheelbase models deliver up to 300 horsepower and the T7 Heavy Duty chassis models deliver up to 313 horsepower.
CONNECT QUICKER Stay in touch with your machines at all times and utilize real-time data recording and sharing with MyPLM Connect telematics, which come standard for five years.

Call Us Now

Specs

T7.230
T7.245
T7.260
T7.270
T7.300
T7.290 HD

New Holland engine*

New Holland engine*
Nef
Nef
Nef
Nef
Nef
Nef
No. of cylinders / Aspiration / Valves
6 / T / 4
6 / T / 4
6 / T / 4
6 / WT / 4
6 / eVGT / 4
6 / eVGT / 4
Compliant with engine emissions regulations
Stage V
Stage V
Stage V
Stage V
Stage V
Stage V
ECOBlue™ HI-eSCR 2 system (Selective Catalytic Reduction)
Standard
Standard
Standard
Standard
Standard
Standard
Fuel system - High pressure Common Rail
Standard
Standard
Standard
Standard
Standard
Standard
Approved biodiesel blend**
B7
B7
B7
B7
B7
B7
Capacity cu. in (cu. cm)
410.57 (6728)
410.57 (6728)
410.57 (6728)
410.57 (6728)
410.57 (6728)
410.57 (6728)
Bore and Stroke in (mm)
4.09 x 5.2 (104 x 132)
4.09 x 5.2 (104 x 132)
4.09 x 5.2 (104 x 132)
4.09 x 5.2 (104 x 132)
4.09 x 5.2 (104 x 132)
4.09x 5.2 (104x132)
Max. horsepower - ISO TR14396- ECE R120 kW/hp (CV)
225 (165)
220 (162)
240 (177)
260 (191)
300 (222)
212/290 (291.99)
Rated horsepower - ISO TR14396- ECE R120 kW/hp (CV)
200 (147)
220 (162)
240 (177)
260 (191)
280 (205)
199/270 (273.75)
Torque rise %
47
46
42
44
37
32
Reversible fan
Optional
Optional
Optional
Optional
Optional
Optional
Rated engine speed (rpm)
2200
2200
2200
2200
2200
2100
Max. torque ISO TR14396 ft-lb (Nm)
940 @ 1500
1035 @ 1500
1100 @ 1500
1160 @ 1500
1249 @ 1300
880.65 (1194) @ 1400rpm
Diesel tank capacity Standard gal (L)
123 (465)
123 (465)
123 (465)
123 (465)
123 (465)
166.43 (630)
AdBlue tank capacity gal (L)
14 (54)
14 (54)
14 (54)
14 (54)
14 (54)
25.36 (96)
Service interval hours
750
750
750
750
750
750

Auto Command™ Continuously Variable Transmission

Axles

Hydraulics

Remote valves

Linkage

PTO

Brakes

PLM Intelligence™ system

Cab

Weights
