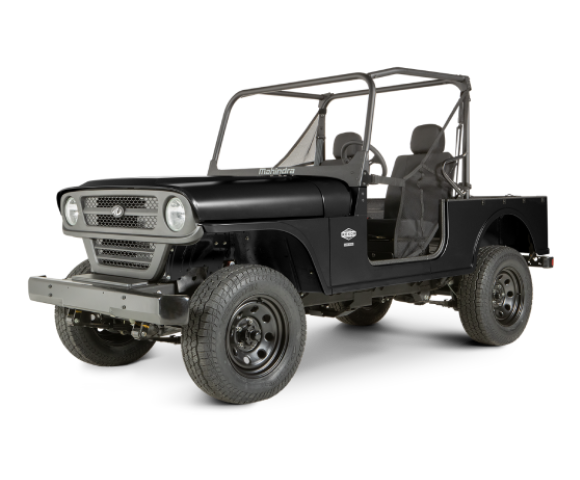

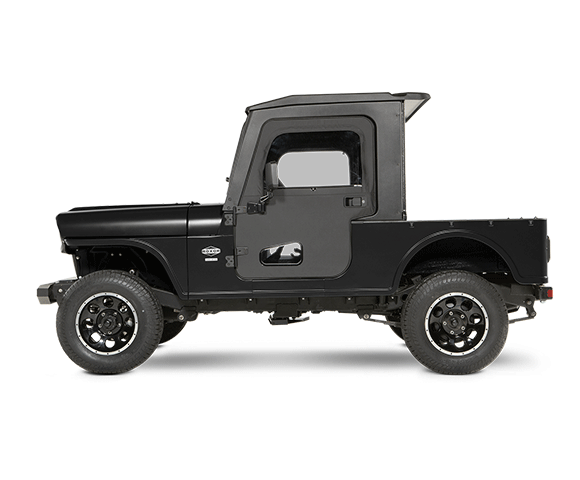

Mahindra ROXOR HD All Weather

Mahindra ROXOR HD All Weather

Contact us for price

Stock status: Call Store for Availability

ROXOR Model HD Base Model HD All-Weather Model
Wheelbase 96” / 244 cm 96” / 244 cm
Base Curb Weight 3075 lb / 1395 kg 3415 lb / 1549 kg
Length 144” / 366 cm 144” / 366 cm
Width 60.7″ / 154 cm 60.7″ / 154 cm
Height 75”/ 191 cm 77”/ 196 cm
Ground Clearance 9” / 22.86 cm 9” / 22.86 cm
Fuel Capacity 16 gal / 60.5 L 16 gal / 60.5 L
Payload Capacity 1525 lb / 692 kg 1185 lb / 538 kg
GVWR 4600 lb / 2087 kg 4600 lb / 2087 kg
Towing Capacity 3500 lb / 1588 kg @ 15 mph 3500 lb / 1588 kg @ 15 mph
Person Capacity 2 2

ROXOR Model HD Base Model HD All-Weather Model
Type Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine
Cylinders 4 4
Displacement 2730cc (2.7L / 165 in³) 2730cc (2.7L / 165 in³)
Bore & Stroke 88.9 X 110.0 mm 88.9 X 110.0 mm
Engine 55 HP @ 2300 RPM (Max 2700 RPM) 55 HP @ 2300 RPM (Max 2700 RPM)
Torque 144 ft-lb @ 1400 rpm 144 lb-ft @ 1400 rpm
Compression Ratio 18.7 : 1 18.7 : 1
Cooling System Liquid Liquid
Fuel System Mahindra Common Rail Diesel (mCRD) Mahindra Common Rail Diesel (mCRD)

ROXOR Model HD Base Model HD All-Weather Model
Max Speed 55 mph 55 mph
Max Towing Speed 15 mph 15 mph
Max Flat Towing Speed 55 mph 55 mph

ROXOR Model HD Base Model HD All-Weather Model
Chassis Type Boxed Steel Frame Boxed Steel Frame
Front Suspension HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar
Rear Suspension HD Leaf Spring w/ Shock Absorbers HD Leaf Spring w/ Shock Absorbers
Tires 235 / 70R16 All-Terrain 235 / 70R16 All-Terrain
Wheels 16 x 7 in Painted Steel 16 x 7 in Polished & Painted Aluminum

ROXOR Model HD Base Model HD All-Weather Model
Transmission 5-speed manual 5-speed manual
Transfer Case 2-speed manual with 2.41:1 2-speed manual with 2.41:1
Driveline 2WD / 4WD 2WD / 4WD
Full Floating Front Axle Full Floating w/5.38 : 1 Gear Ratio Full Floating w/5.38 : 1 Gear Ratio
Semi Floating Rear Axle Semi Floating w/5.38 : 1 Gear Ratio Semi Floating w/5.38 : 1 Gear Ratio

ROXOR Model HD Base Model HD All-Weather Model
Protection Roll-Over Protection System (ROPS) Roll-Over Protection System (ROPS)
Seat Belts (2) 3-point (2) 3-point
Brakes Hydraulic Power Hydraulic Power
Parking Brake Mechanical Mechanical
Front Brakes 11” Disc / 27.94 cm 11” Disc / 27.94 cm
Rear Brakes 11” Drum / 27.94 cm 11” Drum / 27.94 cm

ROXOR Model HD Base Model HD All-Weather Model
Colors Red , Black , Green Red , Black , Green

ROXOR Model HD Base Model HD All-Weather Model
Steering Hydraulic Assist Hydraulic Assist
Storage (2) lockable underseat boxes (2) lockable underseat boxes
Interior Floor ROXLINERTM ROXLINERTM
Cargo Bed ROXLINERTM ROXLINERTM
Cargo Area Tie Downs 8 Side Rail, 2 Floor 8 Side Rail, 2 Floor
Cab Enclosure NA Composite
Climate Control (Heat & AC) NA Standard
Windshield NA Polycarbonate
Wipers NA Dual
Winch (with Mounting Plate) NA WARN 8,000 Lb
Bumper Painted Steel Powdered-coated HD
ROXPOWERTM (Patented) NA Standard

ROXOR Model HD Base Model HD All-Weather Model
Battery 12V AGM 12V AGM
Alternator 90A 90A
Power Outlet 12-volt 12-volt
Instrumentation Digital Cluster Digital Cluster
Headlights Halogen Halogen
Tailights Low-Profile LED Low-Profile LED

ROXOR Model HD Base Model HD All-Weather Model
Country of Assembly USA USA
Warranty 2-Year Limited Warranty 2-Year Limited Warranty
Call Us Now

Specs

ROXOR ModelHD Base ModelHD All-Weather Model
Wheelbase96” / 244 cm96” / 244 cm
Base Curb Weight3075 lb / 1395 kg3415 lb / 1549 kg
Length144” / 366 cm144” / 366 cm
Width60.7″ / 154 cm60.7″ / 154 cm
Height75”/ 191 cm77”/ 196 cm
Ground Clearance9” / 22.86 cm9” / 22.86 cm
Fuel Capacity16 gal / 60.5 L16 gal / 60.5 L
Payload Capacity1525 lb / 692 kg1185 lb / 538 kg
GVWR4600 lb / 2087 kg4600 lb / 2087 kg
Towing Capacity3500 lb / 1588 kg @ 15 mph3500 lb / 1588 kg @ 15 mph
Person Capacity22

ROXOR ModelHD Base ModelHD All-Weather Model
TypeFour-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel EngineFour-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine
Cylinders44
Displacement2730cc (2.7L / 165 in³)2730cc (2.7L / 165 in³)
Bore & Stroke88.9 X 110.0 mm88.9 X 110.0 mm
Engine55 HP @ 2300 RPM (Max 2700 RPM)55 HP @ 2300 RPM (Max 2700 RPM)
Torque144 ft-lb @ 1400 rpm144 lb-ft @ 1400 rpm
Compression Ratio18.7 : 118.7 : 1
Cooling SystemLiquidLiquid
Fuel SystemMahindra Common Rail Diesel (mCRD)Mahindra Common Rail Diesel (mCRD)

ROXOR ModelHD Base ModelHD All-Weather Model
Max Speed55 mph55 mph
Max Towing Speed15 mph15 mph
Max Flat Towing Speed55 mph55 mph

ROXOR ModelHD Base ModelHD All-Weather Model
Chassis TypeBoxed Steel FrameBoxed Steel Frame
Front SuspensionHD Leaf Spring w/ Shock Absorbers & Stabilizer BarHD Leaf Spring w/ Shock Absorbers & Stabilizer Bar
Rear SuspensionHD Leaf Spring w/ Shock AbsorbersHD Leaf Spring w/ Shock Absorbers
Tires235 / 70R16 All-Terrain235 / 70R16 All-Terrain
Wheels16 x 7 in Painted Steel16 x 7 in Polished & Painted Aluminum

ROXOR ModelHD Base ModelHD All-Weather Model
Transmission5-speed manual5-speed manual
Transfer Case2-speed manual with 2.41:12-speed manual with 2.41:1
Driveline2WD / 4WD2WD / 4WD
Full Floating Front AxleFull Floating w/5.38 : 1 Gear RatioFull Floating w/5.38 : 1 Gear Ratio
Semi Floating Rear AxleSemi Floating w/5.38 : 1 Gear RatioSemi Floating w/5.38 : 1 Gear Ratio

ROXOR ModelHD Base ModelHD All-Weather Model
ProtectionRoll-Over Protection System (ROPS)Roll-Over Protection System (ROPS)
Seat Belts(2) 3-point(2) 3-point
BrakesHydraulic PowerHydraulic Power
Parking BrakeMechanicalMechanical
Front Brakes11” Disc / 27.94 cm11” Disc / 27.94 cm
Rear Brakes11” Drum / 27.94 cm11” Drum / 27.94 cm

ROXOR ModelHD Base ModelHD All-Weather Model
ColorsRed , Black , GreenRed , Black , Green

ROXOR ModelHD Base ModelHD All-Weather Model
SteeringHydraulic AssistHydraulic Assist
Storage(2) lockable underseat boxes(2) lockable underseat boxes
Interior FloorROXLINERTMROXLINERTM
Cargo BedROXLINERTMROXLINERTM
Cargo Area Tie Downs8 Side Rail, 2 Floor8 Side Rail, 2 Floor
Cab EnclosureNAComposite
Climate Control (Heat & AC)NAStandard
WindshieldNAPolycarbonate
WipersNADual
Winch (with Mounting Plate)NAWARN 8,000 Lb
BumperPainted SteelPowdered-coated HD
ROXPOWERTM (Patented)NAStandard

ROXOR ModelHD Base ModelHD All-Weather Model
Battery12V AGM12V AGM
Alternator90A90A
Power Outlet12-volt12-volt
InstrumentationDigital ClusterDigital Cluster
HeadlightsHalogenHalogen
TailightsLow-Profile LEDLow-Profile LED

ROXOR ModelHD Base ModelHD All-Weather Model
Country of AssemblyUSAUSA
Warranty2-Year Limited Warranty2-Year Limited Warranty
