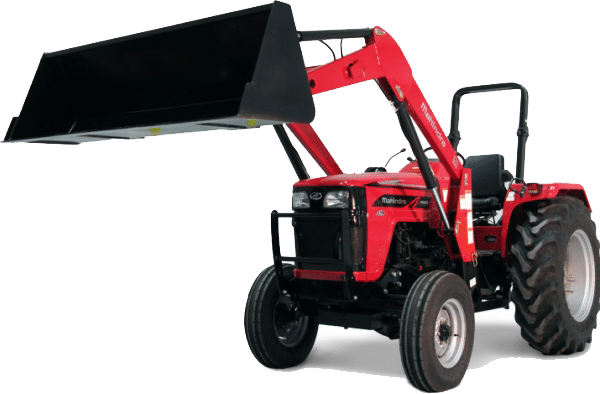

Mahindra 4540

Mahindra 4540

Contact us for price

Stock status: Call Store for Availability

EXCEPTIONAL PERFORMANCE. GREAT VALUE Efficient, no-nonsense workhorse with a robust 4WD powertrain, ready for any task. Budget-friendly and easily customized with high-quality implements and attachments. Models Open Station Horsepower 41 HP Transmission Gear 3-Point Hitch Lift Capacity 3527 lbs Loader lift capacity 2866 lbs Models Open Station Horsepower 48 HP Transmission Gear 3-Point Hitch Lift Capacity 3527 lbs Loader lift capacity 2866 lbs

Call Us Now

Specs

Tractor Model4540 4WD4550 4WD
Engine typeFour-stroke, direct-injection water-cooled, dieselFour-stroke, direct-injection water-cooled, diesel
Engine HP [kW] @ RPM41 (30.5) @ 2300 (T4)48 (35.8) @ 2300 (T4)
Displacement [in3 (cc)]166.7 (2732)166.7 (2732)
Number of cylinders44
Fuel tank [Gal (L)]14.55 gallons14.55 gallons
Bore & stroke [in]Bore : 3.5, Stroke : 4.3Bore : 3.5, Stroke : 4.3

Tractor Model4540 4WD4550 4WD
Transmission typeFull constant meshFull constant mesh
Number of speeds8F / 2R8F / 2R
ClutchDualDual
Max speed (mph)17.617.6
BrakesFully enclosed dry discFully enclosed dry disc

Tractor Model4540 4WD4550 4WD
PTO type Live Live
Rear PTO RPM540 @ 2058540 @ 2058
PTO HP (kW) 31 (23.1)38 (28.3)

Tractor Model4540 4WD4550 4WD
TypeOpen center, full-live hydraulic with position and draft controlsOpen center, full-live hydraulic with position and draft controls
Maximum total flow [GPM (L/min)]8.78.7
3-Point hitchCategory 1 and 2 adjustable, with telescopic stabilizersCategory 1 and 2 adjustable, with telescopic stabilizers
3- Point hitch lift capacity @24" aft [lb (kg)]35273527

Tractor Model4540 4WD4550 4WD
Battery12 volt, 96 amp hours12 volt, 96 amp hours
Alternator12 volt, 45 A12 volt, 45 A

Tractor Model4540 4WD4550 4WD
Overall length [in (mm)]128.9 (3275)127 (3227)
Wheelbase [in (mm)]76.7 (1948)76.7 (1948)
Turning radius [ft (m)]10.5 (3.2)10.5 (3.2)
Overall width [in (mm)]82.6 (2098)82.6 (2098)
Overall height [in (mm)]92.6 (2352)93.7 (2380)
Minimum ground clearance [in (mm)]8.7 (218)8.7 (218)
Weight [lb (kg)]51925192

Tractor Model4540 4WD4550 4WD
AG [Front/Rear]9.5 x 16 / 12.4 x 289.5 x 16 / 12.4 x 28
IND [Front/Rear]12 x 16.5 / 16.9 x 2412 x 16.5 / 16.9 x 24

Tractor Model4540 4WD4550 4WD
Model number4550-4L4550-4L
Max lift height (in)116.6116.6
Loader lift capacity [lb (kg)]28662866
Digging depth (in)3.73.7
