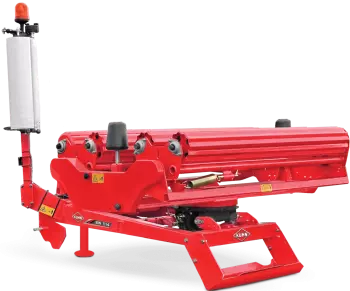

The KUHN SW 1114 is a 3-point mounted, quick-hitch compatible model ideal for “wrap and stack” operations. Wrapping at the storage site means less risk of film damage and can be done by one person. The wrapper can be operated from a loader while using a power pack or second tractor for the oil- and power supply due to the standard RF remote control.
The KUHN SW 1614 is a trailed, self-loading bale wrapper suited perfectly for operations where high capacity and high efficiency are required. The automatic parallel loading arm, with standard round bale kit, ensures gentle, on-the-move bale loading. Due to its unique low-profile chassis design with wide track wheels, a second bale can be carried during wrapping to increase overall efficiency.
| Large square bale size – width x height x length |
|---|
| Round bale size – width x diameter |
| Maximum bale weight |
| Transport width |
| Transport height |
| Hitch |
| Loading system |
| Able to carry second bale on loading arm |
| Ability to wrap round bales |
| Wrapping table |
| Bale support roller |
| Control |
| Semi-automatic operation of (M) version by bale and wrap counter and automatic table stop |
| Automatic stop by end of film / tear |
| RF remote control (rechargeable) |
| Fully automatic film cutter |
| Film pre-stretcher |
| Pre-stretch ratio |
| Required tractor hydraulic connections |
| Output and pressure required |
| Road lights and signaling |
| Tires |
| Ability to turn wheels inside for road transport |
| Machine net weight |
| SW 1114 M | SW 1114 C | SW 1614 M | SW 1614 C |
|---|---|---|---|
| 2×3 or 3×3 bales up to 6′ long (0.6×0.9 or 0.9×0.9 m bales up to 1.8 m long) | 2×3 or 3×3 bales up to 6′ long (0.6×0.9 or 0.9×0.9 m bales up to 1.8 m long) | 2×3 or 3×3 bales up to 6′ long (0.6×0.9 or 0.9×0.9 m bales up to 1.8 m long) | 2×3 or 3×3 bales up to 6′ long (0.6×0.9 or 0.9×0.9 m bales up to 1.8 m long) |
| (4-5)’ x (3-5)’ ((1.2 – 1.5 m) x (0.9 – 1.5 m)) | (4-5)’ x (3-5)’ ((1.2 – 1.5 m) x (0.9 – 1.5 m)) | (4-5)’ x (3×5)’ (1.2-1.5 m x 0.9-1.5 m) | (4-5)’ x (3×5)’ (1.2-1.5 m x 0.9-1.5 m) |
| 2,650 lbs (1,202 kg) | 2,650 lbs (1,202 kg) | Standard 1,770 lbs (803 kg) – optional 2,200 lbs (1,000 kg) | Standard 1,770 lbs (803 kg) – optional 2,200 lbs (1,000 kg) |
| 9’5″ (2.9 m) | 9’5″ (2.9 m) | 8’2″ (2.5 m) | 8’2″ (2.5 m) |
| 8’6” (2.6 m) | 8’6” (2.6 m) | 9’3” (2.8 m) | 9’3” (2.8 m) |
| Cat. 2 (NEW: quick hitch compatible as standard) | Cat. 2 (NEW: quick hitch compatible as standard) | ||
| Non self-loading | Non self-loading | Parallel loading arm | Standard autoload |
| Standard | Standard | ||
| Standard | Standard | Standard | Standard |
| Adjustable twin roller pair configuraiton | Adjustable twin roller pair configuraiton | Adjustable twin roller pair configuration | Adjustable twin roller pair configuration |
| 2 adjustable rollers | 2 adjustable rollers | ||
| (M) Manual 2 lever contolled | (C) Computer controlled | (M) Manual 3 lever/cable controlled | (C) Computer controlled |
| Standard | – | ||
| – | Standard | – | Standard |
| – | Standard | – | Optional |
| Standard hydraulic | Standard hydraulic | Standard hydraulic | Standard hydraulic |
| Standard 30″ (46 cm) – optional 20″ (51 cm) | Standard 30″ (46 cm) – optional 20″ (51 cm) | Standard 30″ (76 cm) – optional 20″ (51 cm) | Standard 30″ (76 cm) – optional 20″ (51 cm) |
| Approximately 70% standard – 60% optional | Approximately 70% standard – 60% optional | Approx. 70% standard – 60% optional | Approx. 70% standard – 60% optional |
| 1 SA with free return or 1 DA | 1 SA with free return or 1 DA | 1 SA with free return or 1 DA | 1 SA with free return or 1 DA |
| 7 gpm at 2,200 psi | 7 gpm at 2,200 psi | 7 gpm at 2,200 psi | 7 gpm at 2,200 psi |
| Optional with trailer kit | Optional with trailer kit | Standard | Standard |
| 15.0/55-17 | 15.0/55-17 | ||
| Manual standard / hydraulic option | Manual standard / hydraulic option | ||
| 2,250 lbs (1,021 kg) | 2,250 lbs (1,021 kg) | 3,375 lbs (1,531 kg) | 3,375 lbs (1,531 kg) |
