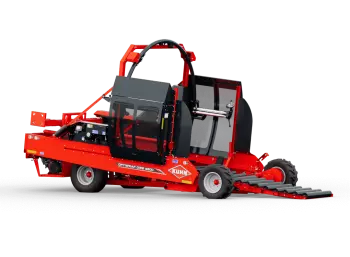

KUHN OWS 6500 Inline Wrapper

MSRP

Call for price

* Prices subject to change. Please contact for latest pricing.

Stock status: Call Store for Availability

With the OptiWrap® OWS 6500, KUHN now offers the ability to inline wrap both round and square bales. The OWS builds on previous wrapper technology, and offers exceptional wrapping productivity, while minimizing film and fuel use. The OWS 6500 has the ability to quickly wrap 3’x3’ and 3’x4’ large square bales, up to 6 feet in length, and 4- and 5-foot round bales up to 6 feet in diameter.

The OWS 6500 utilizes the same proven pre-stretchers with an industry leading 70% plastic stretch ratio. This higher stretch ratio provides more efficient plastic utilization and better bale compression reducing plastic cost per bale. IntelliWrap technology uses a simple display to control the wrapping process and allows the operator to easily adjust many of the wrapper functions conveniently from the monitor. The BaleEye photoelectric sensor accurately and reliably detects a bale on the loading platform with no mechanical moving parts, unlike competitive mechanical sensors.

SPECIFICATIONS

Round bale diameter
Round bale width
Square bale size
Max bale weight
Transport width
Transport height
Transport length
Working length
Machine net weight
Control
Film pre-stretcher
Pre-stretch ratio
Road lights
Front tires (drive)
Rear tires
Braking system/compaction
Hydraulic capacity
Fuel tank capacity
Engine/Power
Hoop speed
Electric start
Emergency stop
OWS 6500
up to 78″ (198 cm)
36″-66″ (91-168 cm)
3’x3′ up to 6′ or 3’x4′ up to 6′ in length
3,000 lbs (1,360 kg)
10’3″ (313 cm)
11’1″ (338 cm)
20’1″ (612 cm)
21’3″ (648 cm)
6,060 lbs (2,752 kg)
Electric controlled (VT 30)
2 x 30″ (750 mm) (Optional 4 x 30″)
Approx. 70% standard (optional 60%)
Standard
29 x 12.5-15
12.5L x 15 8 Ply
Hydraulic braking
12 gal (45 L)
8 gal (30 L)
13 hp Honda iGX standard (optional 20 hp Honda iGX)
Variable
Standard
2 locations
